x402 on Algorand

x402 is an open payment protocol that lets services charge for API access directly over HTTP. Clients pay per request using the 402 Payment Required status code — no sessions, API keys, or credential management required.

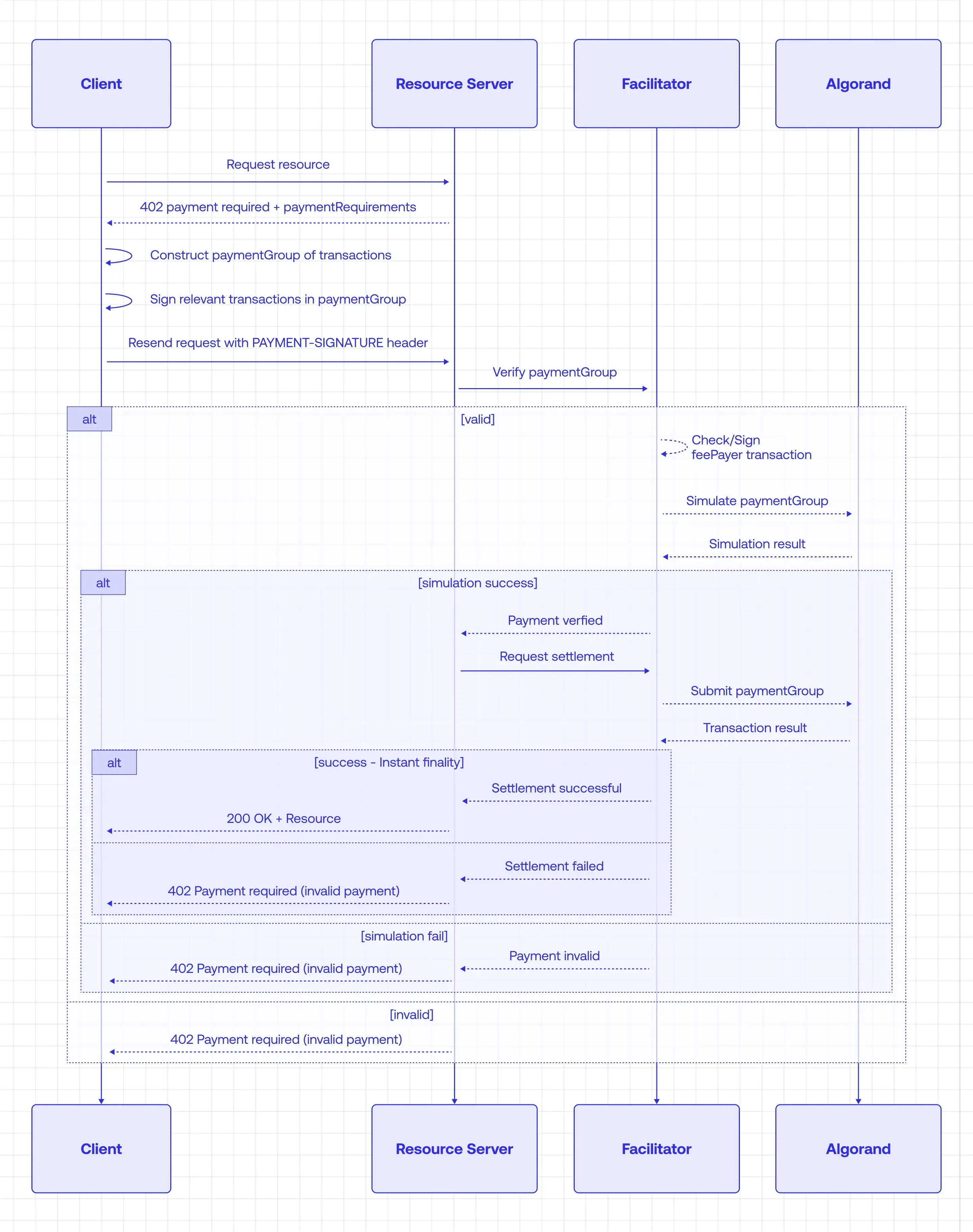

The protocol has three participants: a client sends a request, a resource server returns payment requirements (or the response if already paid), and a facilitator verifies and settles payments on-chain.

Note

You don’t need to run the facilitator — this tutorial uses a hosted one.

This tutorial walks through the protocol by building a working example on Algorand TestNet. You will build a pay-per-API /weather endpoint. Unpaid requests get 402 Payment Required; paid requests get JSON back. You will:

1. Build a client that automatically pays when it receives a 402 response
2. Build a resource server that charges for GET /weather
3. Run both locally end-to-end

Build a pay-per-API service with x402

Prerequisites

• Node.js (LTS or newer) with npm

Setup

Complete these steps in order before running code:

1. Create two TestNet accounts: one for the client (the payer) and one for the resource server (the receiver).

2. Fund both accounts with TestNet ALGO using the Lora faucet. See fees and minimum balance.

3. Opt both accounts into TestNet USDC through Lora or your wallet. See opt in to assets.

4. Get USDC on both accounts from the Circle testnet faucet. Select Algorand Testnet and fund each address.

5. Save these values for later: the client’s payer mnemonic (used as AVM_MNEMONIC) and the resource server’s public address (used as AVM_ADDRESS).

Caution

Never commit mnemonics or private keys. The .env files in this tutorial are for local development only. In production, use wallet integration, KMS, or another secure signing path.

Part 1: Build the client

In this part you’ll build a client that sends a request, handles the 402 response, signs and submits payment, then retries with proof of payment. You’ll test it against a hosted resource server before building your own in Part 2.

Create the project

mkdir x402-demo-client
cd x402-demo-client
npm init -y

Add TypeScript tooling

npm install -D typescript @types/node tsx

Install dependencies

npm install @x402-avm/fetch@^2.6.1 @x402-avm/avm@^2.6.1 @algorandfoundation/[email protected] dotenv

Note

This tutorial currently uses an alpha release of @algorandfoundation/algokit-utils. We will update the guide to the corresponding beta release when it is available in the coming weeks.

Client config

The x402 packages use ESM imports, so package.json needs "type": "module". Open the generated package.json and add it:

{
  "name": "x402-demo-client",
  "type": "module"
}

Only "type": "module" matters — leave the rest of the generated fields as-is.

Create tsconfig.json in the project root:

{
  "compilerOptions": {
    "target": "ES2022",
    "module": "NodeNext",
    "moduleResolution": "NodeNext",
    "strict": true,
    "skipLibCheck": true,
    "esModuleInterop": true,
    "types": ["node"]
  },
  "include": ["**/*.ts"]
}

Environment variables

Add .env to .gitignore, then create .env:

AVM_MNEMONIC="your 25-word mnemonic here"

Plain fetch first (expect 402)

Before adding the x402 libraries, confirm the endpoint requires payment. A plain fetch should return HTTP 402.

Create index.ts at the project root:

const url = 'https://x402.goplausible.xyz/examples/weather';

async function main(): Promise<void> {
  const response = await fetch(url, { method: 'GET' });
  console.log('status:', response.status, response.statusText);
  const paymentHeader = response.headers.get('payment-required');
  if (paymentHeader) {
    console.log('payment-required (first 80 chars):', paymentHeader.slice(0, 80) + '...');
  }
}

main().catch(console.error);

Run:

npx tsx index.ts

Expected output (your payment-required value will differ):

status: 402 Payment Required
payment-required (first 80 chars): eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzY2hlbWUiOiJleGFjd...

Add x402 payment support

Now replace index.ts with the paying version. Instead of a plain fetch, wrapFetchWithPayment intercepts 402 responses, signs an Algorand payment using the mnemonic from AVM_MNEMONIC, and retries the request with the payment proof attached. This requires the Setup above: funded accounts, asset opt-in, and TestNet USDC.

import { config } from 'dotenv';
import { x402Client, wrapFetchWithPayment, x402HTTPClient } from '@x402-avm/fetch';
import { toClientAvmSigner } from '@x402-avm/avm';
import { registerExactAvmScheme } from '@x402-avm/avm/exact/client';
import {
  ed25519SigningKeyFromWrappedSecret,
  type WrappedEd25519Seed,
} from '@algorandfoundation/algokit-utils/crypto';
import { seedFromMnemonic } from '@algorandfoundation/algokit-utils/algo25';

config();

const avmMnemonic = process.env.AVM_MNEMONIC as string;
const url = 'https://x402.goplausible.xyz/examples/weather';

async function main(): Promise<void> {
  const secretKey = await getSecretKeyFromMnemonic(avmMnemonic);
  // Create the Algorand signer used to authorize payments.
  const avmSigner = toClientAvmSigner(secretKey);

  // Initialize the x402 client.
  const client = new x402Client();
  // Register the exact AVM scheme so the client knows how to satisfy Algorand "exact" requirements.
  registerExactAvmScheme(client, { signer: avmSigner });
  console.info(`AVM signer: ${avmSigner.address}`);

  // Wrap fetch so 402 responses trigger payment handling automatically.
  const fetchWithPayment = wrapFetchWithPayment(fetch, client);

  const response = await fetchWithPayment(url, { method: 'GET' });

  if (response.ok) {
    const paymentResponse = new x402HTTPClient(client).getPaymentSettleResponse(name =>
      response.headers.get(name),
    );
    console.log('\nPayment response:', JSON.stringify(paymentResponse, null, 2));
  } else {
    console.log(`\nNo payment settled (response status: ${response.status})`);
  }
}

// Build the base64-encoded signing key that x402-avm expects.
// The format is the 32-byte Ed25519 seed concatenated with the 32-byte public key.
async function getSecretKeyFromMnemonic(avmMnemonic: string): Promise<string> {
  const seed = seedFromMnemonic(avmMnemonic);
  const seedCopy = new Uint8Array(seed);
  const wrappedSeed: WrappedEd25519Seed = {
    unwrapEd25519Seed: async () => seed,
    wrapEd25519Seed: async () => {},
  };
  const wrappedSecret = await ed25519SigningKeyFromWrappedSecret(wrappedSeed);
  return Buffer.concat([Buffer.from(seedCopy), Buffer.from(wrappedSecret.ed25519Pubkey)]).toString(
    'base64',
  );
}

main().catch(error => {
  console.error(error?.response?.data?.error ?? error);
  process.exit(1);
});

Run the paying client from the project root:

npx tsx index.ts

Expected output (addresses and transaction IDs will differ):

AVM signer: ABC123...
Payment response: {
  "transactionId": "TXID...",
  "status": "settled"
}

Part 2: Build the resource server

In this part you’ll build a resource server that hosts a /weather endpoint. It returns a 402 response when a request lacks valid payment and delegates verification to the facilitator, only serving data once payment is confirmed.

Create the server project

mkdir x402-demo-server
cd x402-demo-server
npm init -y

Add TypeScript tooling

npm install -D typescript @types/node tsx

Install dependencies

npm install @x402-avm/hono@^2.6.1 @x402-avm/avm@^2.6.1 @x402-avm/core@^2.6.1 hono @hono/node-server dotenv

Server config

As with the client, set "type": "module" in package.json:

{
  "name": "x402-demo-server",
  "type": "module"
}

Then copy tsconfig.json from Client config.

Environment variables

Add .env to .gitignore, then create .env:

AVM_ADDRESS=
FACILITATOR_URL=https://facilitator.goplausible.xyz

Use the resource server account’s public address for AVM_ADDRESS (Setup). FACILITATOR_URL points to the hosted facilitator, so you do not need to run facilitator code for this tutorial.

Implement GET /weather

Create index.ts at the project root. The paymentMiddleware function intercepts incoming requests and checks for a valid payment proof before forwarding to your route handler — unpaid requests get a 402 response with payment instructions.

The accepts array defines what the server will accept as payment. Each entry specifies the scheme, price, network, and recipient. The network value algorand:SGO1GKSzyE7IEPItTxCByw9x8FmnrCDexi9/cOUJOiI= is the CAIP-2 identifier for Algorand TestNet — this tells clients which chain to submit payment on.

import { config } from 'dotenv';
import { paymentMiddleware, x402ResourceServer } from '@x402-avm/hono';
import { ExactAvmScheme } from '@x402-avm/avm/exact/server';
import { HTTPFacilitatorClient } from '@x402-avm/core/server';
import { Hono } from 'hono';
import { serve } from '@hono/node-server';
config();

const avmAddress = process.env.AVM_ADDRESS;
if (!avmAddress) {
  console.error('Missing AVM_ADDRESS environment variable');
  process.exit(1);
}

const facilitatorUrl = process.env.FACILITATOR_URL;
if (!facilitatorUrl) {
  console.error('Missing FACILITATOR_URL environment variable');
  process.exit(1);
}
const facilitatorClient = new HTTPFacilitatorClient({ url: facilitatorUrl });

const accepts = [
  {
    scheme: 'exact',
    price: '$0.001',
    network: 'algorand:SGO1GKSzyE7IEPItTxCByw9x8FmnrCDexi9/cOUJOiI=' as const,
    payTo: avmAddress,
  },
];

const server = new x402ResourceServer(facilitatorClient).register(
  'algorand:SGO1GKSzyE7IEPItTxCByw9x8FmnrCDexi9/cOUJOiI=',
  new ExactAvmScheme(),
);

const app = new Hono();

app.use(
  paymentMiddleware(
    {
      'GET /weather': {
        accepts,
        description: 'Weather data',
        mimeType: 'application/json',
      },
    },
    server,
  ),
);

app.get('/weather', c => {
  return c.json({
    report: {
      weather: 'sunny',
      temperature: 70,
    },
  });
});

serve({
  fetch: app.fetch,
  port: 4021,
});

console.log(`Server listening at http://localhost:4021`);

Unpaid GET /weather returns HTTP 402; paid requests return the JSON body.

Part 3: Run locally

In Part 1 you hit a hosted resource server. Now you’ll point the client at your own local server so you can see the full flow end-to-end.

Start the resource server

From the x402-demo-server directory:

npx tsx index.ts

Leave it running on http://localhost:4021.

Expected output:

Server listening at http://localhost:4021

Point the client at your server

In the client index.ts, change the URL to your local server:

const url = 'http://localhost:4021/weather';

Run the client

From the x402-demo-client directory:

npx tsx index.ts

You should get the weather JSON after payment settles. The output will look similar to the Part 1 output, with your local server’s transaction details.

Note

Optional: To run your own facilitator later, see self-hosted facilitator (Express) and index.ts.

Next steps

You now have a working x402 payment flow on Algorand TestNet. From here you can add more paid routes, adjust pricing, or deploy your own facilitator for full control over payment settlement.
